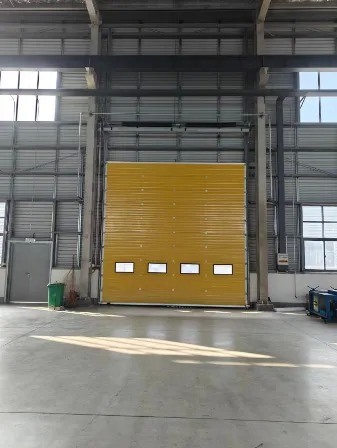

Industrial Sectional Garage Door with Security Remote Control and EPDM Seal

MOQ:	1
Precio:	500

Detail Information

Product Description

Detail Information

Certificación:

ISO9001, CE

Modelo No.:

SD-S1

Tipo:

Corredizo

Estilo abierto:

Corredizo

espesor del panel de la puerta:

40 mm

Espesor de acero galvanizado:

0,4 mm

vía de acero galvanizado:

2.0 mm

Motor:

AC 220V-240V 50/60Hz

Bisagra:

2.0 mm

Sello:

EPDM

Material que hace espuma:

Poliuretano sin flúor

Conductividad térmica:

0.38 w/mc

Aislamiento acústico:

Las emisiones de gases de efecto invernadero se calcularán en función de la temperatura de la atmósf

Resistencia al fuego:

B2 (DIN4102)

Resistencia al viento:

450 N/m2

Torsion Spring Life:

30.000 ciclos

Resaltar:

Security Sectional Door

Remote Control Garage Door

EPDM Seal Industrial Door

Product Description

Garage Door Galvanized Material

Sectional Door for Factory and Hangar Applications

Our sectional rolling shutter doors are designed for industrial facilities, offering wind resistance and thermal insulation. These segmented steel doors feature customizable panels that can combine windows and steel sections. When retracted, they roll up compactly against the ceiling, making them suitable for virtually any installation condition.

Premium Insulated Construction

The industrial sectional door panels consist of double-layer sandwich hot-dip galvanized steel plates with polyurethane surface treatment. The 40mm thick core contains polyurethane insulation for superior thermal performance. The door features:

Box-shaped edge banding with connecting hinges for embedded track installation
Spherical vinyl resin sealing strips along width and height for weatherproofing
Torsion spring balance system with steel-cable breaking device
Manual operation capability without motor power

Technical Specifications

Parameter	Value
Thermal conductivity	0.38 W/mc
Acoustic insulation	24dB (DIN52210)
Fire resistance	B2 (DIN4102)
Standard wind load	450N/m²

Key Components

Component	Specification
Motor transmission system	Industrial door motor with reduction gear, three-phase asynchronous motor, brake system, and manual chain mechanism
Control system	Digital signal processing with phase sequence protection, overcurrent protection, HMI display, and vector frequency conversion
Door plate	Double-layer hot-dip galvanized steel (0.4mm thickness) with polyurethane core (46kg/m³ density)
Rail system	2mm thick anti-corrosive metal guide rail with multiple lifting options
Safety systems	Torsion spring break-proof system, wire rope anti-break device, safety pressure switch, and infrared safety beam

Product Gallery

Frequently Asked Questions

What is the minimum order quantity?

No minimum order quantity. We recommend using wooden crates for shipping protection.

How are product sizes determined?

We provide professional suggestions and drawings based on your specific requirements.

Are samples available?

Yes, samples are available for quality checking.

How do I get pricing information?

Provide exact size and quantity requirements for a detailed quotation.

What payment terms do you accept?

We typically accept T/T (Telegraphic Transfer) payments.

Can we become your local agent?

We welcome agent applications. Please send your company information and proposal via email.

Is factory visitation possible?

Yes, our factory is located 2.5 hours from Shanghai Airport. Visitors are welcome.
